Sử dụng tối ưu được cho nhiều thiết bị như:

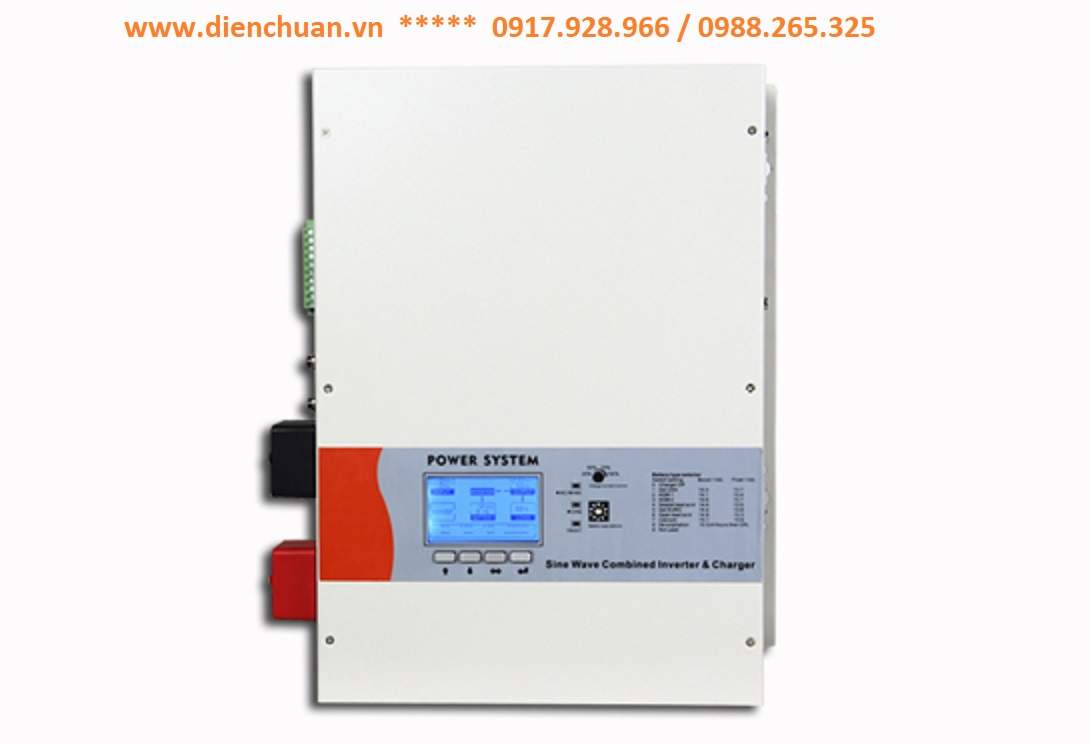

Kích điện Inverter sin chuẩn Apollo HI3000 48V ( 3KVA/1800W)

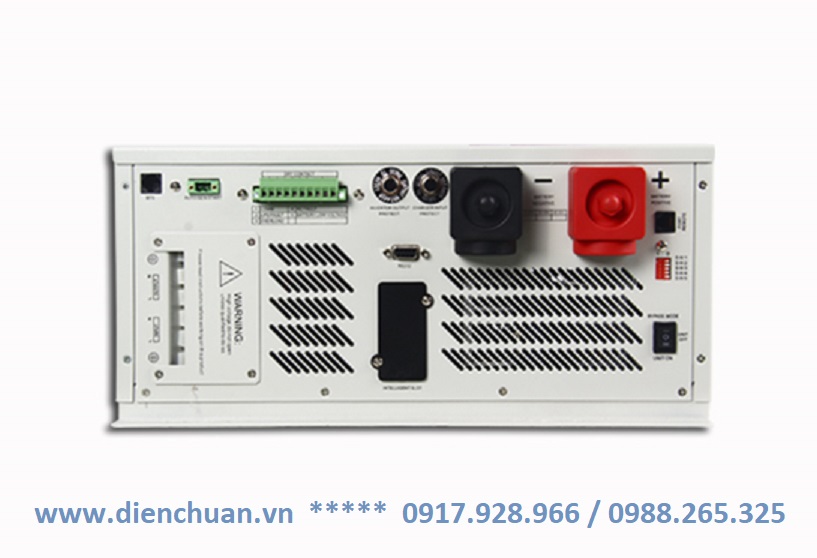

Kích điện Inverter sin chuẩn Apollo HI3000 48V ( 3000VA/1800W)
Sử dụng tối ưu được cho nhiều thiết bị như:
Sử dụng tối ưu được cho nhiều thiết bị như:
MODEL |
HI500 |
HI1500 |
HI2000 |
HI2500 |
HI3000 |
|
Capacity |
500 VA / 300 W |
1500 VA / 900 W |
2000 VA / 1200 W |
2500 VA / 1600 W |
3000 VA / 1800 W |
|
DC INPUT |
||||||
Rated voltage |
12 V |
24 V |
24 V |
48 V |
||
DC input range (default) |
10 ~ 15V |
20 ~ 30 V |
20 ~ 30 V |
40 ~ 60V |
||
AC INPUT |
||||||
AC input range (bypass mode) |
0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac |
|||||
AC input range (mains mode) |
100 V: 70 ~ 130 Vac 110 V: 80 ~ 140 Vac 115 V: 85 ~ 145 Vac |
|||||
Frequency input range |
50 Hz / 60 Hz (auto-sense), 50 Hz / 60 Hz ± 5% ~ 15% |
|||||
Generator connection |
Available (generator input power is settable) |
|||||
OUTPUT |
||||||
Inverter output range |
100 V / 110 V / 115 V / 120 Vac ± 5% (settable) |
|||||
AC output range (bypass mode) |
0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac |
|||||
AC output range (mains mode) |
100 V: 90 ~ 110 Vac 110 V: 99 ~ 121 Vac 115 V: 103 ~126 Vac |
|||||
Output frequency |
50 / 60 Hz ± 0.3 Hz (settable) |
|||||
Waveform |
Pure sine wave |
|||||
Inverter efficiency |
Max. 75% |
Max. 80% |
Max. 85% |
|||
Energy saving mode |
Settable (< 3% load) , enter in 80 s |
|||||
No-load shutdown |
Settable (< 3% load), shut down in 80 s |
|||||
Transfer time |
≤ 10 ms |
|||||
THDV |
≤ 5% |
|||||
Protections |
Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature |
|||||
Overload time |
120 s for 110%, 60 s for 125%, 10 s for 150% (transfer to bypass mode) |
|||||
Overload time |
60 s for 110%, 10 s for 125%, 5 s for 150% (Shut down directly) |
|||||
Mute |
Automatic mute in 60 s or by manual |
|||||
BATTERIES |
||||||
Battery capacity |
12 VDC |
12 VDC |
24 VDC |
24 VDC |
48 VDC |
|
Charging current |
Long time model: 10 A (default); <10 A, set step 1 A; ≥ 10 A, set step 5 A |
|||||
Max. 10 A |
Max. 15 A |
Max. 15 A |
Max. 20 A |
Max. 20 A |
||
Equalizing |
Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable |
|||||
Floating charge voltage |
Single battery 13.5 Vdc(default),13.2 ~ 14.6 Vdc adjustable |
|||||
Low voltage alarm point |
Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc adjustable |
|||||
Low voltageshutdown point
|
Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable |
|||||
COMMUNICATIONS |
||||||
USB+RJ45 (optional) |
Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10 |
|||||
SNMP (optional) |
Power management from SNMP manager and web browser (standard with slot) |
|||||
OTHERS |
||||||
Operating temperature |
5℃~ 40℃ |
|||||
Operating humidity |
Relative humidity ≤ 93% |
|||||
Noise level |
≤ 50 dB (1m) |
|||||
Tower |
Dimensions (W×D×H) (mm) |
144 x 345 x 215 |
144 x 410 x 215 |
190 x 467 x 335.5 |
||
Packaged dimensions (W×D×H) (mm) |
236 x 427 x 316 |
236 x 492 x 316 |
320 x 592 x 462 |
|||
Net weight (kg) |
7.0 |
11.6 |
14.2 |
17.8 |
28.0 |
|
Gross weight(kg) |
8.0 |
13.2 |
15.2 |
18.8 |
30.0 |
|
Rack mount |
Dimensions (W×D×H) (mm) |
-- |
440 × 338 × 88 |
440 × 410 × 132 |
||
Packaged dimensions (W×D×H) (mm) |
-- |
611 × 448 × 208 |
611 × 505 × 235 |
|||
Net weight (kg) |
-- |
14.6 |
17.2 |
21.3 |
26.7 |
|
Gross weight (kg) |
-- |
16.8 |
20.4 |
24.5 |
30.5 |
